Home > Products > MEDICALE LB45ME

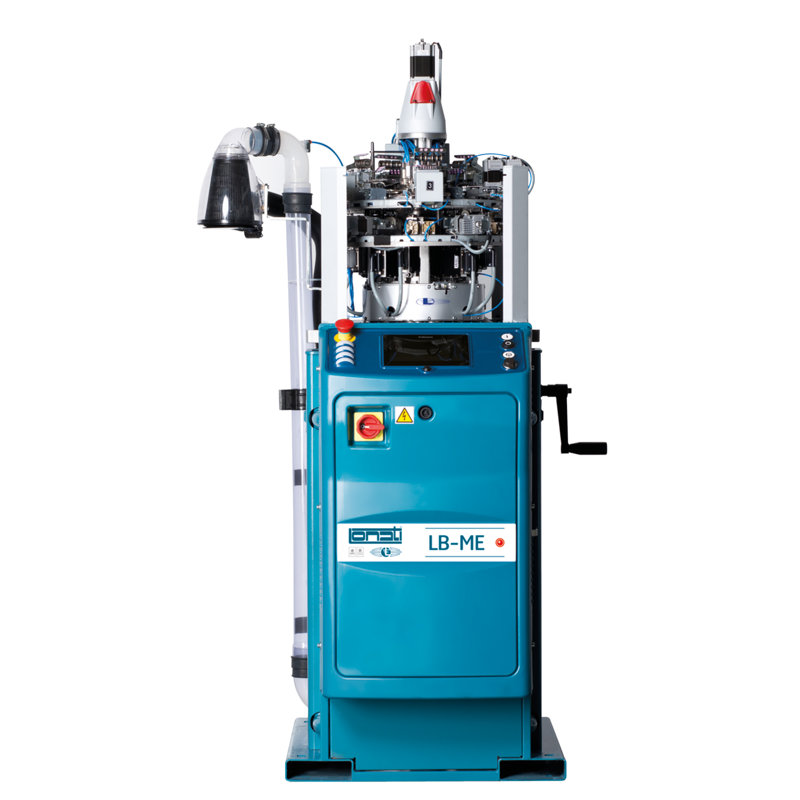

MEDICALE LB45ME

Single Cylinder

Product

Socks

Type

Medical

Fabric

Shaping pantyhose

Mesh

Plain fabric

Pattern

Bikini

Patterned

Cylinders

Syngle Cylinder

Feeds

4 feeds

Dimensions

Width 60 x Depth 60 x Height 136 Cm

Weight

230 Kg

Certification

Green Label

Dimensions with yarn creel

Width 145 x Depth 145 x Height 265 Cm

Yarn creel weight

70 Kg

MEDICALE LB45ME
1

4 YARNFINGERS UNITS

Electropneumatic yarn fingers

2

5 STITCH UNITS

Pull-out units with motorized control of heights

3

8 SELECTION DEVICES

Electronic selection system

4

RISING DIAL UNIT

Motorized system

Electropneumatic single cylinder 4 feeds machine for the production ofclass 1,2,3 compression medical socks and medical goods, with reciprocated heel and toe on 1 feed with 2 rising needle pickers and 2 droppers, or pouch type heel and toe. 2 electronic selection units on each feed (one in tucking position and one in clearing position). Motorized stitch cams for enlargements in any area of the garments or on course. Single or double dial jacks. 2 or 4 feeds pattern. reciprocated heel and toe in different sizes and in different positions. Full-electronic programming of the knitting cycle. machine memory for the storing of different items in 8 sizes each. Electronic device to maintain the size at any temperature of the machine.
