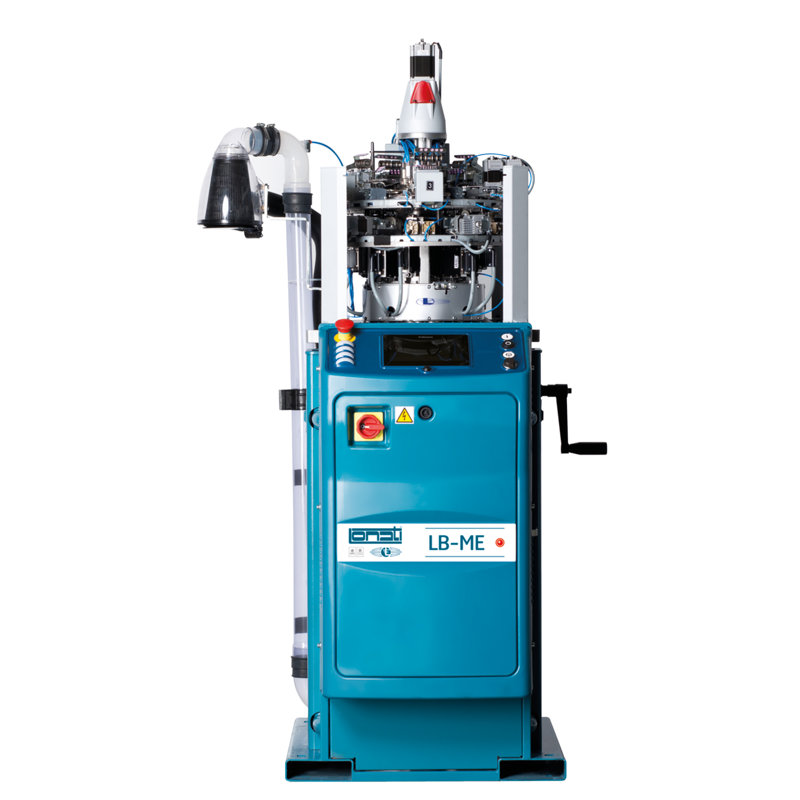

MEDICALE LB40ME
Single Cylinder
Product
Socks
Type
Medical
Fabric
Shaping pantyhose
Mesh
Plain fabric
Pattern
Bikini
Patterned
Cylinders
Syngle Cylinder
Feeds
4 feeds
Dimensions
Width 60 x Depth 60 x Height 136 Cm
Weight
230 Kg
Certification
Green Label
Dimensions with yarn creel
Width 145 x Depth 145 x Height 265 Cm
Yarn creel weight
70 Kg
4 YARNFINGERS UNITS
Electropneumatic yarn fingers
5 STITCH UNITS
Pull-out units with motorized control of heights
8 SELECTION DEVICES
Electronic selection system
RISING DIAL UNIT
Motorized system
Electropneumatic single cylinder 4 feeds machine for the production ofclass 1,2,3 compression medical socks and medical goods, with reciprocated heel and toe on 1 feed with 2 rising needle pickers and 2 droppers, or pouch type heel and toe. 2 electronic selection units on each feed (one in tucking position and one in clearing position). Motorized stitch cams for enlargements in any area of the garments or on course. Single or double dial jacks. 2 or 4 feeds pattern. reciprocated heel and toe in different sizes and in different positions. Full-electronic programming of the knitting cycle. machine memory for the storing of different items in 8 sizes each. Electronic device to maintain the size at any temperature of the machine.
